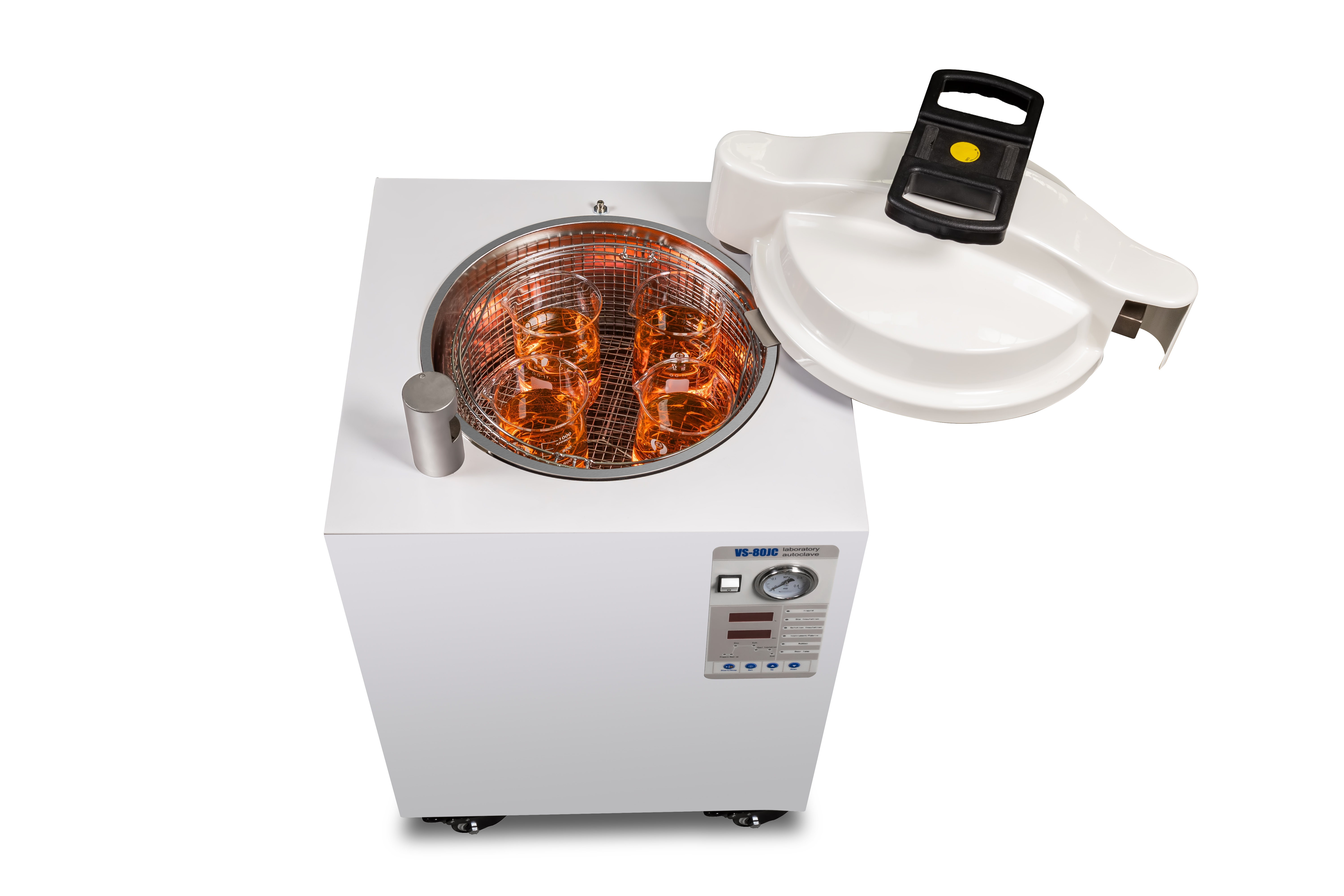

VS-JC series Vertical pressure steam sterilizer

VS-JC series vertical sterilizer is a kind of small automatic high temperature and high pressure sterilization equipment with pressure steam as medium.It is suitable for sterilization of fabrics, tools, rubber, liquid, glassware, culture medium, waste and other articles in biological research institutes at all levels, such as biological laboratory.

Technical parameters:

u Design pressure:  0.3MPa;

u Rated working pressure: 0.23MPa

u  Sterilization temperature: 105 ~ 134℃

u  Maximum temperature: 136℃

u Sterilization time range: 0~60min;

u  Cavity material: SUS304 stainless steel

Main sexual characteristics:

n Temperature rise, sterilization process automatic control, imported pressure switch control sterilization pressure.

n Sterilization temperature can be set, convenient for users to choose sterilization temperature for different items.

n  Indicator indicates the working status and automatically stops heating when the process is over.

n Overtemperature automatic protection device: the system automatically cuts off the power supply when the temperature exceeds the setting.

n Door safety interlocking device: through the provincial technical supervision bureau special equipment safety appraisal, the door is not closed in place, the heating power can not be connected;There's pressure in the chamber. The door won't open.

n Overpressure relief valve: when the opening pressure of the relief valve exceeds, the relief valve opens and relieves pressure.

n Heat preservation and heat insulation cover: the door cover made of heat preservation and heat insulation material is isolated, which is beautiful and can prevent the operator from scalding.

n  Horizontal sliding quick door structure, self-expanding seal, simple and safe operation.
